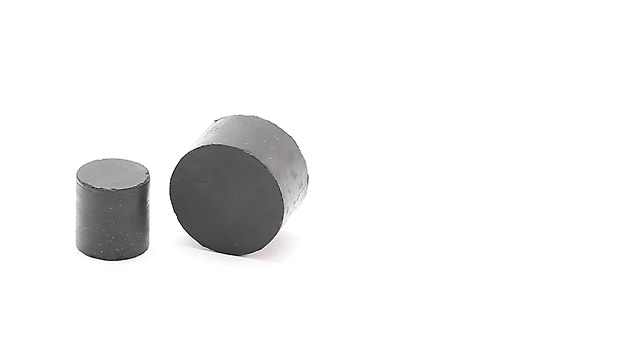

Standard Rubber Bungs and Stoppers
Below is our range of Standard Rubber Bungs and Stoppers.
A Rubber Bung / Stopper is used to plug holes in metal plates. We also stock Tapered Bungs and Stoppers, please see our Tapered Bungs page for sizes available.
Our range of Standard Rubber Bungs and Stoppers are stocked in one of Nitrile, Neoprene, EPDM, Natural Rubber and Silicone. Our Rubber Bungs can be manufactured in any rubber listed in our materials section. Please see our Materials page for more information on the types of rubber we can offer.
- Same day despatch on stock items.
- 5 - 7 working days average lead time for made to order standard parts.
- Minimum order value of £30 (plus carriage and VAT - subject to stock)
- Some parts may be subject to minimum order quantities should they not be in stock.
Prices and Availability
Contact our sales team now for prices and availability, by email to sales@grommets.co.uk or call +44 (0)1273 494 400.
Alternatively please use our contact form or online chat facility.
Measuring Guide
Need help measuring for the right sized part?
Please use the guide to help you measure dimensions of the Standard Rubber Bungs and Stoppers you require. Then select a product code from the list that may be suitable for your measurements.
Measuring Guide
Standard Rubber Bungs and Stoppers
Please use the diagram above to help you measure the a and b dimensions of the Standard Rubber Bungs and Stoppers you require. Using these measurements as a guide you can then select a product code from the list that may be suitable for your requirements.
All of our part numbers are made up of the three a and b dimensions of the part itself.
Standard Bungs and Stoppers Product List/Sizes
Our Rubber Bungs and Stoppers are listed in order of their panel hole size, starting with the smallest.
Use your ‘a’ dimension to find a suitable part in our list. All our part numbers are made up of the two a and b dimensions of the part itself.
Standard Bungs
| Part Number | a (mm) | b (mm) |
|---|---|---|
| G11-RB48-64 | 4.8 | 6.4 |
| G11-RB70-41 | 7.0 | 4.1 |
| G11-RB83-40 | 8.3 | 4.0 |
| G11-RB127-100 | 12.7 | 10.0 |
| G11-RB127-160 | 12.7 | 16.0 |
| G11-RB136-140 | 13.6 | 14.0 |
| G11-RB150-76 | 15.0 | 7.6 |
| G11-RB155-84 | 15.5 | 8.4 |
| G11-RB180-97 | 18.0 | 9.7 |
| G11-RB190-160 | 19.0 | 16.0 |
| G11-RB191-140 | 19.1 | 14.0 |
| G11-RB200-60 | 20.0 | 6.0 |
| G11-RB200-95 | 20.0 | 9.5 |
| G11-RB200-125 | 20.0 | 12.5 |
| G11-RB206-60 | 20.6 | 6.0 |
| G11-RB216-98 | 21.6 | 9.8 |
| G11-RB220-60 | 22.0 | 6.0 |
| G11-RB222-135 | 22.2 | 13.5 |
| G11-RB233-100 | 23.3 | 10.0 |
| G11-RB285-160 | 28.5 | 16.0 |
| G11-RB381-300 | 38.1 | 30.0 |
| G11-RB413-80 | 41.3 | 8.0 |
