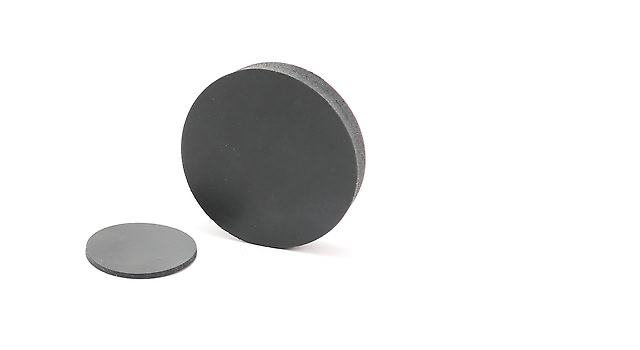

Rubber Discs
Below is our standard range of Rubber Discs.
A Rubber Disc is suitable for a range of uses including vacuum pumps; furniture; paving and timber decking.
Rubber Discs are available in Nitrile, Neoprene, EPDM, Natural Rubber or Silicone subject to minimum order quantities.
- Same day despatch on stock items.
- 5 - 7 working days average lead time for made to order standard parts.
- Minimum order value of £30 (plus carriage and VAT - subject to stock)
- Some parts may be subject to minimum order quantities should they not be in stock.
Prices and Availability
Contact our sales team now for prices and availability, by email to sales@grommets.co.uk or call +44 (0)1273 494 400.
Alternatively please use our contact form or online chat facility.
Measuring Guide
Need help measuring for the right sized part?
Please use the guide to help you measure dimensions of the Rubber Discs you require. Then select a product code from the list that may be suitable for your measurements.
Measuring Guide
Rubber Discs
Please use the diagram above to help you measure the a and b dimensions of the Rubber Discs you require. Using these measurements as a guide you can then select a product code from the list that may be suitable for your requirements.
All of our part numbers are made up of the three a and b dimensions of the part itself.
Discs Product List/Sizes
Our Discs are listed in order of their outer diameter size, starting with the smallest.
Use your ‘a’ dimension to find a suitable part in our list. All our part numbers are made up of the a and b dimensions of the part itself.
Diameter
1.0 to 24.0mm
Diameter
25.0 to 40.0mm
Diameter
41.0 to 102.0mm
| Part Number | a (mm) | b (mm) |
|---|---|---|
| G36-RD90-10 | 9.0 | 1.0 |
| G36-RD100-50 | 10.0 | 5.0 |
| G36-RD110-60 | 11.0 | 6.0 |
| G36-RD115-50 | 11.5 | 5.0 |
| G36-RD140-40 | 14.0 | 4.0 |
| G36-RD150-30 | 15.0 | 3.0 |
| G36-RD170-20 | 17.0 | 2.0 |
| G36-RD170-40 | 17.0 | 4.0 |
| G36-RD180-30 | 18.0 | 3.0 |
| G36-RD180-40 | 18.0 | 4.0 |
| G36-RD180-60 | 18.0 | 6.0 |
| G36-RD180-80 | 18.0 | 8.0 |
| G36-RD180-100 | 18.0 | 10.0 |
| G36-RD190-10 | 19.0 | 1.0 |
| G36-RD190-60 | 19.0 | 6.0 |
| G36-RD200-40 | 20.0 | 4.0 |
| G36-RD200-60 | 20.0 | 6.0 |
| G36-RD200-80 | 20.0 | 8.0 |
| G36-RD200-100 | 20.0 | 10.0 |
| G36-RD220-40 | 22.0 | 4.0 |
| G36-RD220-60 | 22.0 | 6.0 |
| G36-RD220-80 | 22.0 | 8.0 |
| G36-RD220-100 | 22.0 | 10.0 |
| G36-RD240-20 | 24.0 | 2.0 |
| Part Number | a (mm) | b (mm) |
|---|---|---|
| G36-RD250-40 | 25.0 | 4.0 |
| G36-RD250-60 | 25.0 | 6.0 |
| G36-RD250-80 | 25.0 | 8.0 |
| G36-RD250-100 | 25.0 | 10.0 |
| G36-RD258-55 | 25.8 | 5.5 |
| G36-RD300-15 | 30.0 | 1.5 |
| G36-RD300-40 | 30.0 | 4.0 |
| G36-RD300-60 | 30.0 | 6.0 |
| G36-RD300-80 | 30.0 | 8.0 |
| G36-RD300-100 | 30.0 | 10.0 |
| G36-RD320-35 | 32.0 | 3.5 |
| G36-RD320-40 | 32.0 | 4.0 |
| G36-RD320-60 | 32.0 | 6.0 |
| G36-RD320-80 | 32.0 | 8.0 |
| G36-RD320-100 | 32.0 | 10.0 |
| G36-RD335-15 | 33.5 | 1.5 |
| G36-RD350-15 | 35.0 | 1.5 |
| G36-RD350-60 | 35.0 | 6.0 |
| G36-RD350-80 | 35.0 | 8.0 |
| G36-RD350-100 | 35.0 | 10.0 |
| G36-RD400-40 | 40.0 | 4.0 |
| G36-RD400-60 | 40.0 | 6.0 |
| G36-RD400-80 | 40.0 | 8.0 |
| G36-RD400-100 | 40.0 | 10.0 |
| Part Number | a (mm) | b (mm) |
|---|---|---|
| G36-RD480-40 | 48.0 | 4.0 |
| G36-RD500-40 | 50.0 | 4.0 |
| G36-RD500-60 | 50.0 | 6.0 |
| G36-RD500-100 | 50.0 | 10.0 |
| G36-RD600-40 | 60.0 | 4.0 |
| G36-RD600-100 | 60.0 | 10.0 |
| G36-RD605-64 | 60.5 | 6.4 |
| G36-RD880-40 | 88.0 | 4.0 |
| G36-RD1000-15 | 100.0 | 1.5 |
| G36-RD1016-30 | 101.6 | 3.0 |
