Tapered Rubber Plugs
Below is our standard range of Tapered Rubber Plugs.

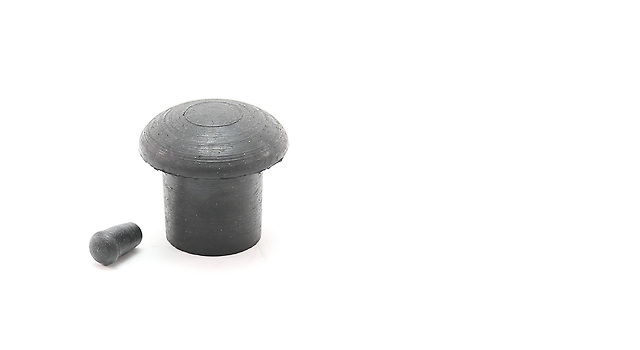

We are a manufacturer, supplier and stockist of tapered rubber plugs. A tapered plug is used for blanking off holes in metal panels, especially where the panel is too thick for a standard blind grommet.
We can also manufacture custom tapered plugs to your specification.
We stock a number of different styles of rubber tapered plugs manufactured in either Nitrile, Neoprene, EPDM, Natural Rubber and Silicone. Please see our Materials page for more information on the types of rubber we use for manufacturing our goods.
- Same day despatch on stock items.
- 5 - 7 working days average lead time for made to order standard parts.
- Minimum order value of £30 (plus carriage and VAT - subject to stock)
- Some parts may be subject to minimum order quantities should they not be in stock.
Prices and Availability
Contact our sales team now for prices and availability, by email to sales@grommets.co.uk or call +44 (0)1273 494 400.
Alternatively please use our contact form or online chat facility.
Measuring Guide
Need help measuring for the right sized part?
Please use the guide to help you measure dimensions of the Tapered Rubber Plugs you require. Then select a product code from the list that may be suitable for your measurements.
Measuring Guide
Tapered Rubber Plugs
Please use the diagram above to help you measure the a, b, c dimensions of the Tapered Rubber Plugs you require. Using these measurements as a guide you can then select a product code from the list that may be suitable for your requirements.
All of our part numbers are made up of the three a, b, c dimensions of the part itself.
Tapered Plugs Product List/Sizes
Our Tapered Plugs are listed in order of their panel hole size, starting with the smallest.
Use your ‘a’ dimension to find a suitable part in our list. All our part numbers are made up of the three a, b, c dimensions of the part itself.
Tapered Plugs
| Part Number | a (mm) | b (mm) | c (mm) |
|---|---|---|---|
| G11-TP35-130-100S | 3.5 | 13.0 | 10.0 |
| G11-TP41-74-78S | 4.1 | 7.4 | 7.8 |
| G11-TP48-95-65 | 4.8 | 9.5 | 6.5 |
| G11-TP50-100-80 | 5.0 | 10.0 | 8.0 |
| G11-TP80-127-100 | 8.0 | 12.7 | 10.0 |
| G11-TP100-110-123 | 10.0 | 11.0 | 12.3 |
| G11-TP120-700-160S | 12.0 | 70.0 | 16.0 |
| G11-TP250-250-380 | 25.0 | 25.0 | 38.0 |
